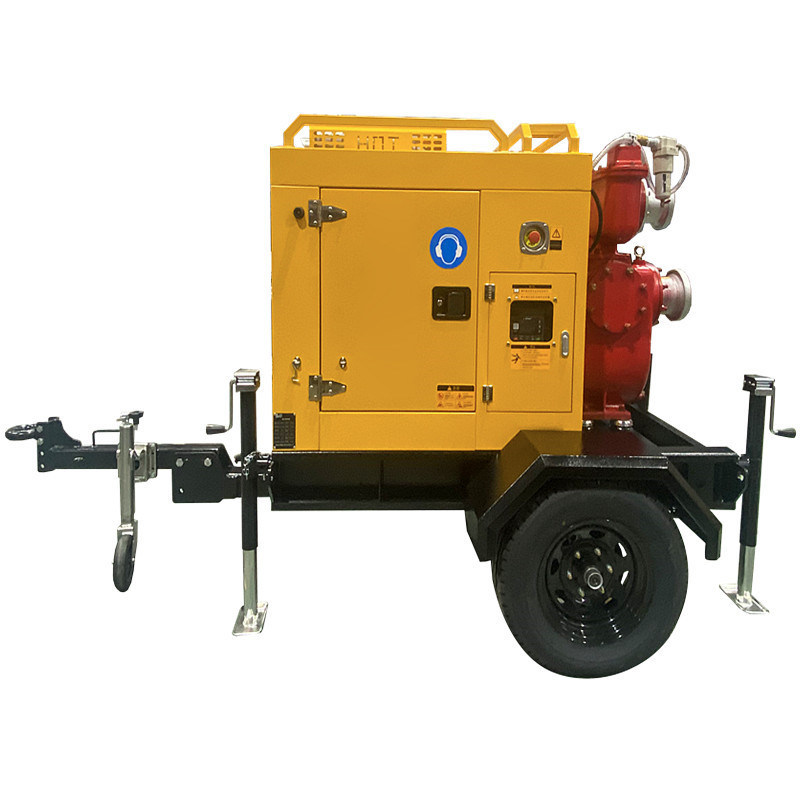

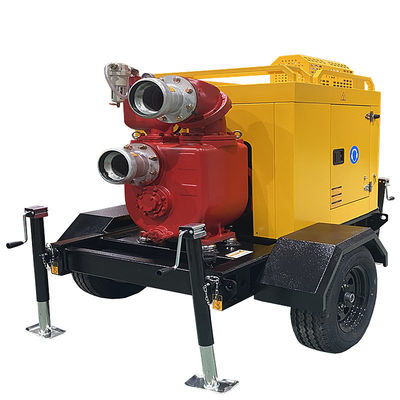

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump

Nom De Marque:	SANROCK POWER
Numéro De Modèle:	Le SP450QZ-25TP
Nombre De Pièces:	1 set
Prix:	Chat with supplier now for more details.
Détails De L'emballage:	Emballage nu pour machines, emballage en bois pour pièces de rechange ou demande des clients.
Conditions De Paiement:	Moneygram, Western Union, T / T, D / P, D / A, L / C

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Zhejiang, Chine

Certification:

OEM, ODM, OBM

Document:

Source d'énergie:

moteur diesel

Application:

Pompes d'égout, pompes à boues, pompes à eau de drainage, pompes à irrigation, etc.

Nom de produit:

Pompe d'amorçage d'individu

Avantage:

longue vie active

Structure:

Pompes à plusieurs étages,pompes à un seul étage,pompes à piston,pompes à variété correspondante,aut

Couleur:

bleu, bleu/OEM, n'importe quelle couleur, conception du client, exigences du client

Démarrer:

Pompe électrique

Industrie:

Pompe mécanique

Performance:

Pompes automatiques

Type de raccordement:

Accouplement à haute élasticité ou accouplement à broches

accessoires de pompage:

Trailer, voile silencieux, panneau de commande, réservoir de carburant

Capacité d'approvisionnement:

100000set / mois

Mettre en évidence:

6 inch diesel water pump

single stage centrifugal pump

high pressure sea water pump

Description du produit

Multiple Water Source Compatibility: Designed to draw water from a wide range of sources, including rivers,

lakes, ponds, drainage ditches, and wells, making it invaluable in areas without direct access to pressurized water lines.

Portable diesel water pump the effect of high flow rate, high head, and high suction.

Easy to operate, one click quick start. It can solve problems such as farmland irrigation, urban drainage, and flood discharge.

If you need it, our company will be the right choice.

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 0

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 1

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 2

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 3

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 4

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 5

Advantages of diesel water pump unit

1.Adopt excellent hydraulic model and advanced manufacturing technology to greatly improve the performance and service life of the pump.

2.Since the shaft seal uses mechanical seals made of cemented carbide and fluororubber, it can improve the reliability of pump operation and the transmission of media.temperature.

3.The flow-passing part of the pump is stamped and welded by stainless steel plates, making the pump suitable for mildly corrosive media.

4.The overall structure is compact, small in size, light in weight, low in noise, significant in energy saving, and easy to maintain.

5.The water inlet and outlet of the pump are located on the same horizontal line as the pump base and can be directly used in the pipeline.

6.Using standard motor, users can easily equip the motor according to their needs.

7.Intelligent protectors can be equipped according to user needs to effectively protect the pump from dry running,phase loss, overload, etc.

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 6

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 7

Standard scope of Supply
1). Diesel pump unit: Diesel engine, water pump, cooling fan, cooling water tank, steel structure base (including fuel tank 80-120L), battery, connecting wires, exhaust muffler, control panel.
2). Standard design is the pump group, the fuel tank, control panel, battery composite type.
3). Can be designed according to customer requirement pump group, the fuel tank, control panel, battery, outdoor rainproof cabinet composite outdoor type.
4). Can be designed according to customer requirement trailer (four or two wheels) moveable type.

Structural characteristics
Pump shell, impeller, made of ductile iron or alloy material;
With access port, easy to daily maintenance;
Mechanical seal made of silicon carbide material;
Front and rear wear discs with rubber;
The whole body laser cutting, automatic welding, phosphating spray treatment.

Can you do OEM for me?We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will  ship the goods.
Warranty service

Product Description

Model	SP450QZ-25TP	SP700QZ-20TP	SP1000QZ-20TP	SP1500QZ-20TP	SP2000QZ-15TP
Inlet & Outlet Port(mm)	150	200	250	250	350
Max.Flow (m3/h)	450m3/h	700m3/h	1000m3/h	1500m3/h	2000m3/h
Max.Flow (m3/h)	(DN150)	(DN200)	(DN200*2)	(DN200*3)	(DN200*4)
Max.Head (m)	25	20	20	20	20
Speed (rpm)	1500	1500	1500	1500	1500
Solid Handing (mm)	76	76	76	76	76
Size LWH (mm)	200016501765	281017301960	330019202400	292017602050	350021002300

The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 8

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 9

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 10

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 11

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 12

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 13

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 14

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 15

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 16

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 17

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 18

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 19

6 Inch Diesel Water Pump Head 25m Single Stage Centrifugal Pump High Pressure Sea Water Pump 20

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
